SPECIFICATIONS

Brand Name: KYAAO
Certification: CE,EAC,FCC,weee
Color: RGB(Red,Green,Blue)
Hign-concerned Chemical: None
Installation Method: Self-Contained
Is Bulbs Included: Yes
Item Type: Stage Lighting Effect
Laser source: G=500Mw,R=500Mw,B=1200Mw
Luminous Flux: <60
Material: Cast aluminum
Mode: F3200A
Model Number: KYAAO-F3200A
Occasion: Professional Stage & DJ
Origin: Mainland China
Power: 60-90W
Power (W): 60W
Power Source: AC
Size: 275X210X185mm
Style: DMX Stage Light
Stype: DMX512 stage light
Type: APP laser with bluetooth
Voltage: 90-240V
Wavelength: Green=532nm,Red=650nm,Blue=450nm
Weight: 2.5KG

（Note）Upgrade Version:APP has been updated,it compatible with IOS and Android

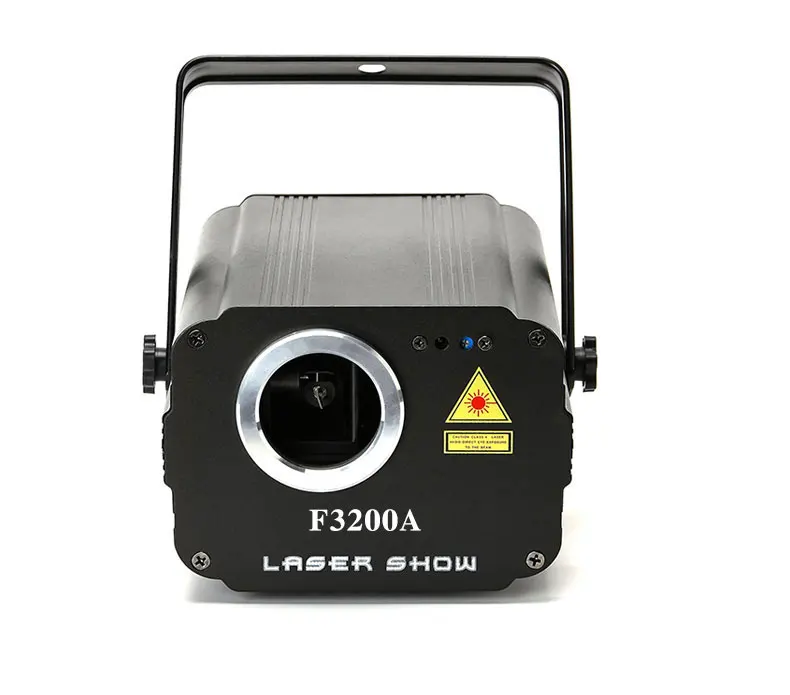

F3200A:Product description
This is the real 2.2W laser light ,it is more colorful and strong beams
Working voltage: AC100-240V 50/60Hz
Power: 60W
Laser power: RGB 2200mW
Laser wavelength:
green light: 500mW  520nm
red light: 500mW    638nm
blue light:1200mW    450nm
Control mode:remote,dmx512,app ,sound and auto modes
Modulation signal: TTL modulation
Laser color: full color
Scanning system: 15-20kpps galvanometer
Scanning angle: ±25°(big angle)
Laser pattern: 15 groups of patterns, 1900 patterns(you need use a DMXcontroller to see all the patterns)
Remote:you can view 455 patterns with remote
Cooling system: forced cooling of the fan
Working environment: indoor (10-35°)
Channel mode: 34CHS
Net weight: 2.5KG
●APP operation interface instructions:
First step: Open your Bluetooth function in your
cell phone, and open this software go into the
interface which is second step. If you want to
change the language pls go to the interface to change it.

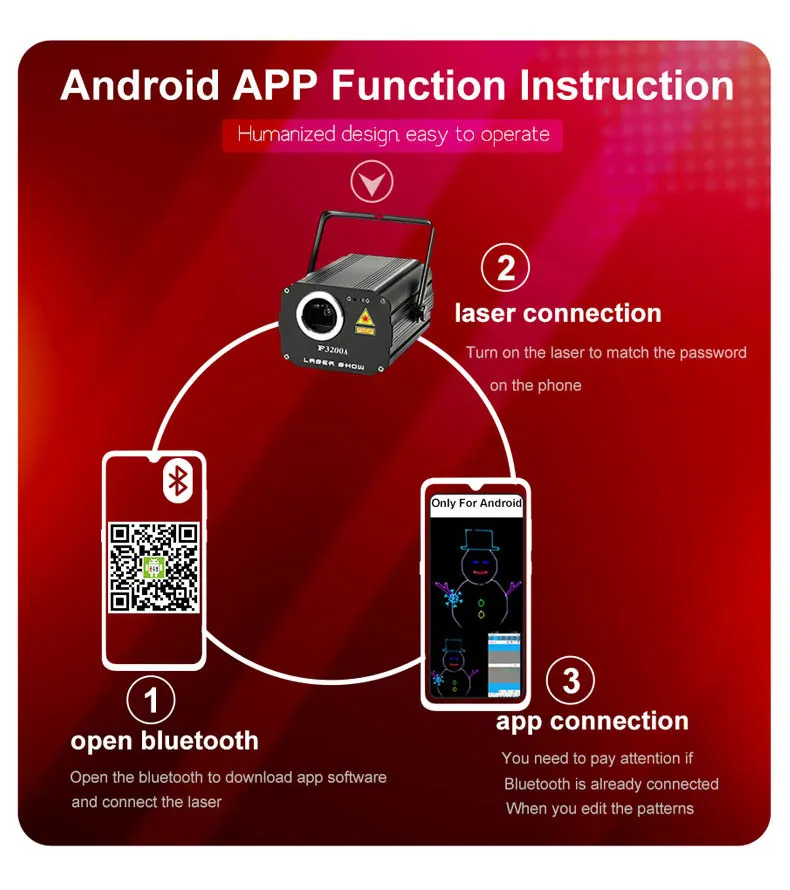

Android app function instructions
this laser can connect android system via bluetooth,that you can edit the patterns on the app ,it's very humanized
Big scan angle
this laser has big scan angle ±25°,biggest angle can reach 50°
This laser is 2.2W high powerfl
this laser is 2.2w high powerful,adopt Thickened aluminum chassis for better heat dissipation and longer service life compared to other chassis
Remtoe instructions
you can view 455 patterns with the remote,and change the  laser mode ,change color and change patterns  ect.functions on remote,
<
